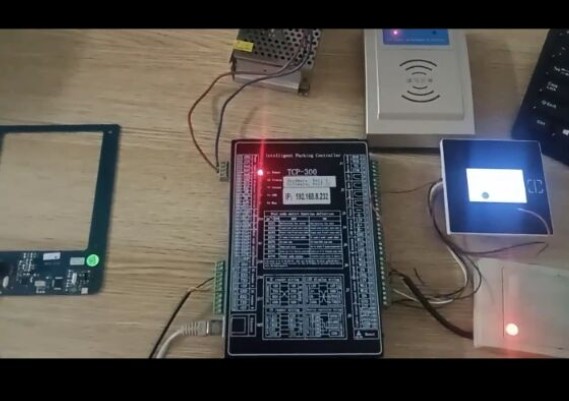

The IC card reading small module board is connected to the main control board of the parking lot system（parking management controller tcp300）, and it is used to read the card antenna for IC card reading whilce the car is

comming into the parking lot.

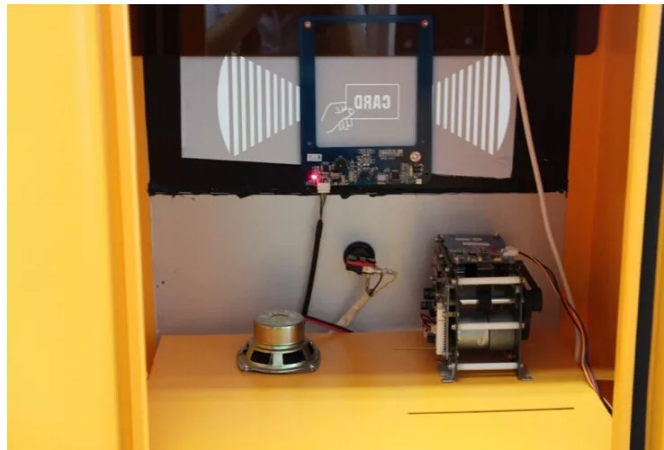

The sintronic,s Parking entry ticket ic reader is usually installed on the parking ticket box read card area.

Technical Parameters:

Reading distance: 1-10cm

Features:

Reading antenna is made of PVC board, beautiful and durable, stable reading of card reading;
Using different size antenna design, it can meet the needs of automatic spit card out -of -card card reading cards and chassis panel reading card reading;
The anti -static design structure is adopted to ensure that the high frequency is not disturbed and the card reading is stable.

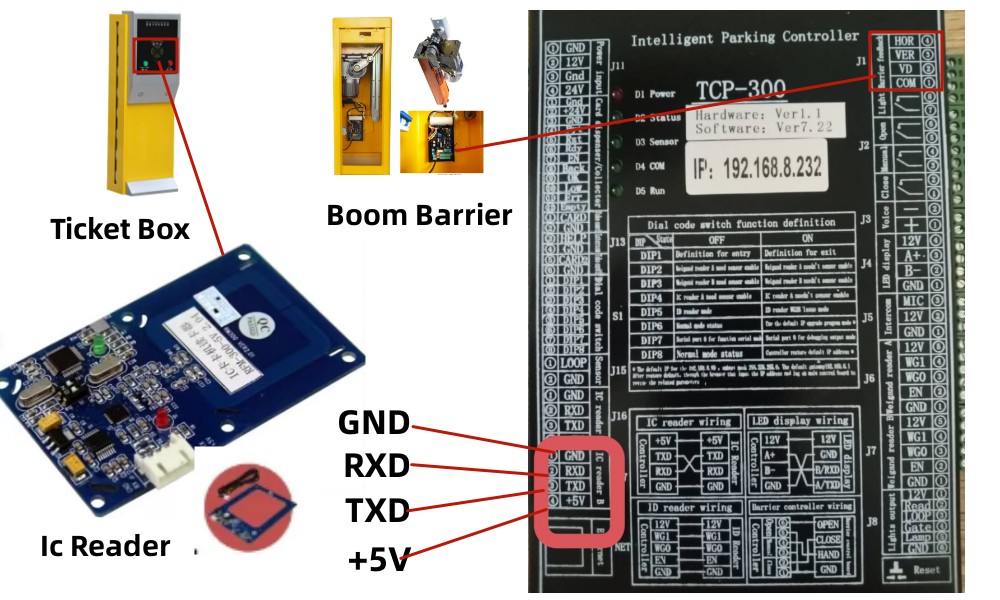

System Diagram:

Applications:

it is widely use in the place which need rfid card parking ticket management system such as

commercial parking lot, factory , commercial building, plaza, offcie building, hospital , goverment
