Technical Parameters:

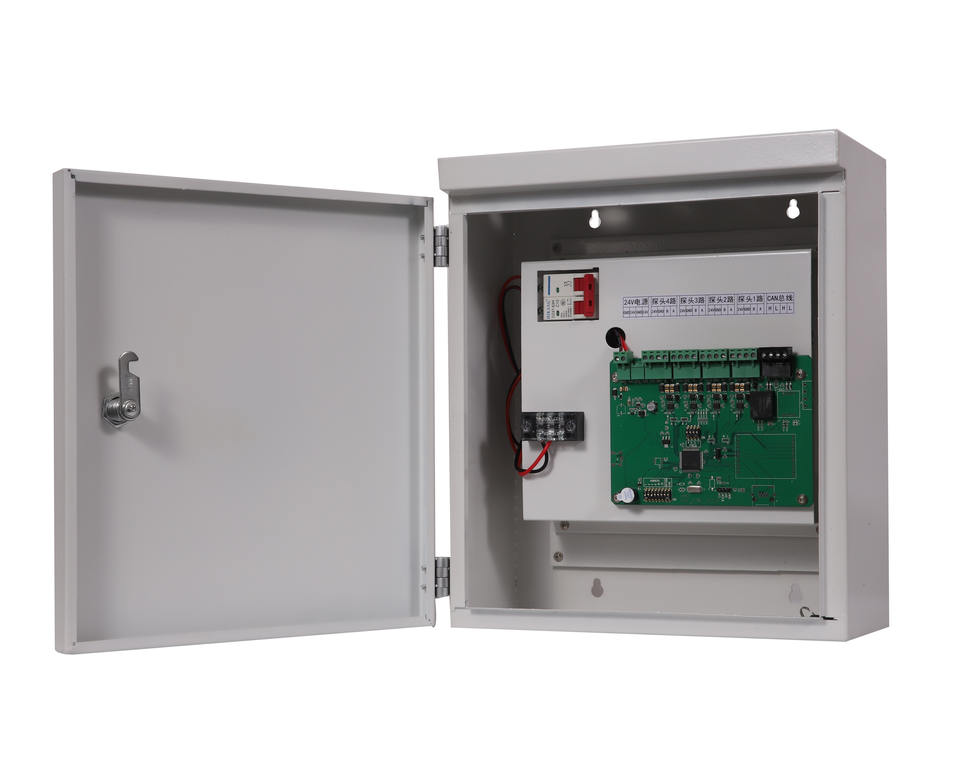

Chassis size: 345×290×150mm
Working voltage: AC110-AC240V/3W
Communication distance: CAN: 1000M, Ethernet: 100M
Communication interface: 1 channel CAN@20kbps/1 channel 10/100M Ethernet
Tips:
A:.Central controller  can independent offline control and one unit of main control box can support max 64 units of nod control box
B:.Nod controller Each can be connected to  32 units ultrasonic parking guidance device (detectors and led display)

Feature
1. The main controller receives the node controller and uses the .s485 industrial bus communication. The signal transmission distance can reach 1200 meters.
2. Node controller communication detector and guidance screen, use the RS485 industrial bus communication, the signal transmission distance can reach 1200 meters.

System Diagram:

Applications

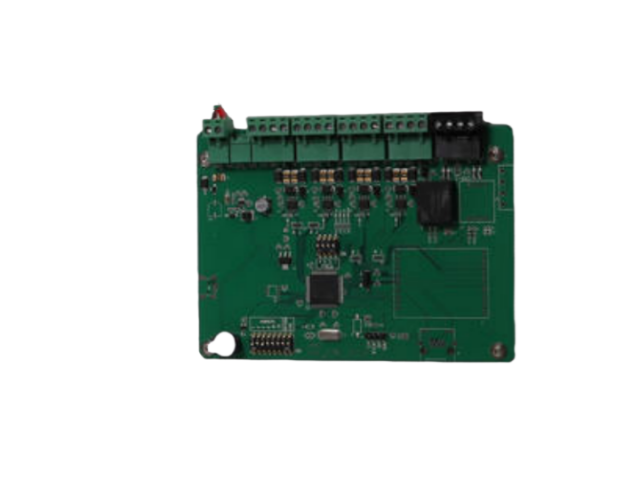

Our Nod control panel parking guidance area control is the core device for our parking guidance system to connect wiring

in between parking guidance led display,parking sensor detector and cetral main controller is widly use in the parking lot for hospital, building,shopping mall, plaza, hotel , goverment administation center helping the visitor to have an convenience parking experience

We are original manufacturing factory in china
