Hydraulic road blocker

  • RB-101PS
  • System control :Hydraulic
  • Power Supply:AC220V~380V 50Hz
  • Warranty:2 years
  • Product description: We're professional Hydraulic road blocker manufacturers and suppliers in China, We warmly welcome you to wholesale bulk Hydraulic road blocker in stock here from our factory. For pricelist, contact us
  • INQUIRY

Product Descriptions:

Our Anti terrorist hydraulic road blocker adopts a brand-new structural design, densely lined with a high channel steel frame, compact structure, thick materials, greatly improving the pressure resistance and anti-collision performance

A)Technical Parameters:

Control system : electric-hydraulic
Material: Q235 carbon steel
Color: Yellow in black (customized)
LED warning light: optional, support lettering
Panel thickness: 12/16/20/25mm(Optional)
Bearing capacity: under100/120 tons container trucks
Rising time: 0.5~3 seconds (adjustable)
Falling time: 0.5~3 seconds (adjustable)
Working temperature: -40º C~ +70º C/Humidity 5% to 95%, non-condensing
Weatherproofing level: IP68
Power supply: three-phase 380VAC(optional 220VAC)
Net weight: 1.8 ~2.8 tons (optional)

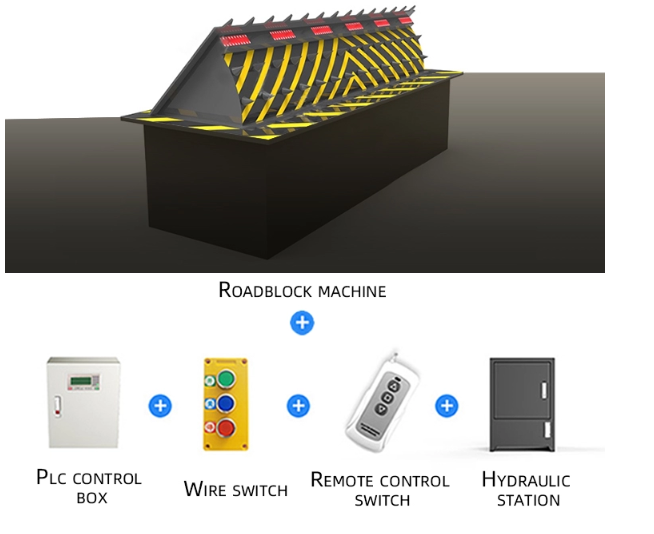

Hydraulic station
Motor: 3HP*4P, three-phase 380VAC (industrial grade)
Oil pump: gear pump (industrial grade) with mounting platform
Raising & falling electromagnetic valve industrial grade
Heavy hydraulic oil vat : heavy industrial grade.
Double-acting double-oil manual pump 2.3ml/ time (industrial grade)
Oil tank capacity 60 liter. 46# hydraulic oil(buy in local)
Hydraulic pipe PT international standard interface, 1/2 double steel wire,high-pressure pipe
Spare parts
oil pipe & PVC-U drain pipe(Diameter: 110 mm), length based on each case on site.
Control box
PLC chip: imported original chip (industrial grade)
Power switch: CHINA brand industrial grade
Control electromagnetic valve: CHINT brand industrial grade
Power supply: MEANWELL brand industrial grade
Raising & falling control: short-range wireless remote controller or wire control
Wire control distance ≤100 meters
Traffic light: With LED signal RED & GREEN lights.
Basic length: 1/2/3/3.5/4/4.5/5/5.5/6 meters length
Led indication lights: RGB
Standard dimensions (can be customized)
3000(l) x1000(w) 760(h)mm, raising height: 500mm intercept width 2690mm.
Remarks:
1, Construction drawings are providable
2, Remote technical guide is providable.
3,  On site technical support is available.

Features:

1. The structure is firm and can carry a large load;
2. Smooth movement and low noise;
3. Using low-pressure hydraulic drive mode, easy to maintain and long life;
4. Emergency release after power failure, and fall safely without power;
5. It can be linked with barriers, ground-sensing vehicle detection, license plate recognition system and other equipment.
6. The main frame of the equipment adopts overall galvanizing treatment, which has strong anti-rust performance.

hydraulic road blocker

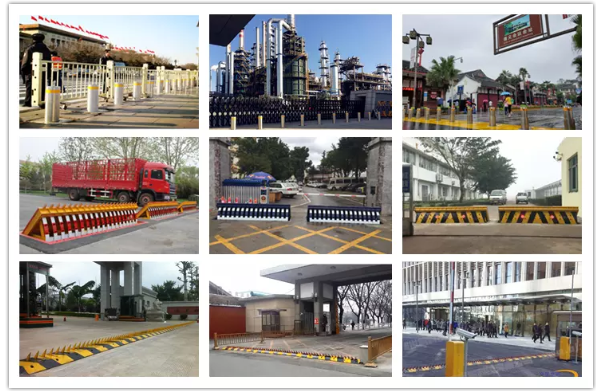

Install examples:

The Anti terrorist hydraulic road blocker(also known as the anti-terrorist wall) can be divided into double-sided anti-collision roadblock machine and single-side anti-collision roadblock machine according to its protective performance. Both use hydraulic energy as the power to realize the lifting function of the turning body. Its main function is to provide troops and prisons. , Road bayonet, warehouse, terminal and other key prevention departments

Installment examples of hydraulic road block
FAQ:

1. Are you a trade company or manufacturer?
SINTRONIC is a professional manufacturer of Hostile Vehicle Mitigation equipment over 12 years, the first one Hydraulic Integrated Automatic Bollards is produced by us at 2009 in China Market, we have rich experience in R&D, production and installation for road barrier products. is a professional manufacturer of Hostile Vehicle Mitigation equipment over 12 years, the first one Hydraulic Integrated Automatic Bollards is produced by us at 2009 in China Market, we have rich experience in R&D, production and installation for road barrier products.
2. What materials do you use to manufacture your bollards, road blockers and tyre killers?
SINTRONIC products are made from carbon steel or stainless steel. Carbon steel can be galvanized or zinc coated for added protection. Stainless steel bollards are quickly becoming the bollard of choice. They are rust resistant and have a clean, finished look to accentuate any architectural design.
3. Have you got products impact test?
SINTRONIC Hydraulic Automatic Bollards is the first one success to pass the impact test by 6800KGs / 80KMH standards at 2011 in China;
And again Hydraulic Automatic Bollards success to pass the impact test by 6800KGs / 80KMH and 1500KGs / 100KMH standards, equal ASTM M50 and ASTM C60 at 2018;
SINTRONIC Hydraulic Automatic Road Blockers success to pass the impact test by 6800KGs / 65KMH standards at 2018, equal ASTM M40;
