What is the install position between parking sytem card reader and boom gate in one exit and one entry

 DOWNLOAD

How to determine the installation location of the equipment of the smart parking lot? In addition to the on-site environmental factors, the installation location of the equipment should also pay attention to the following points, we will explain them one by one.

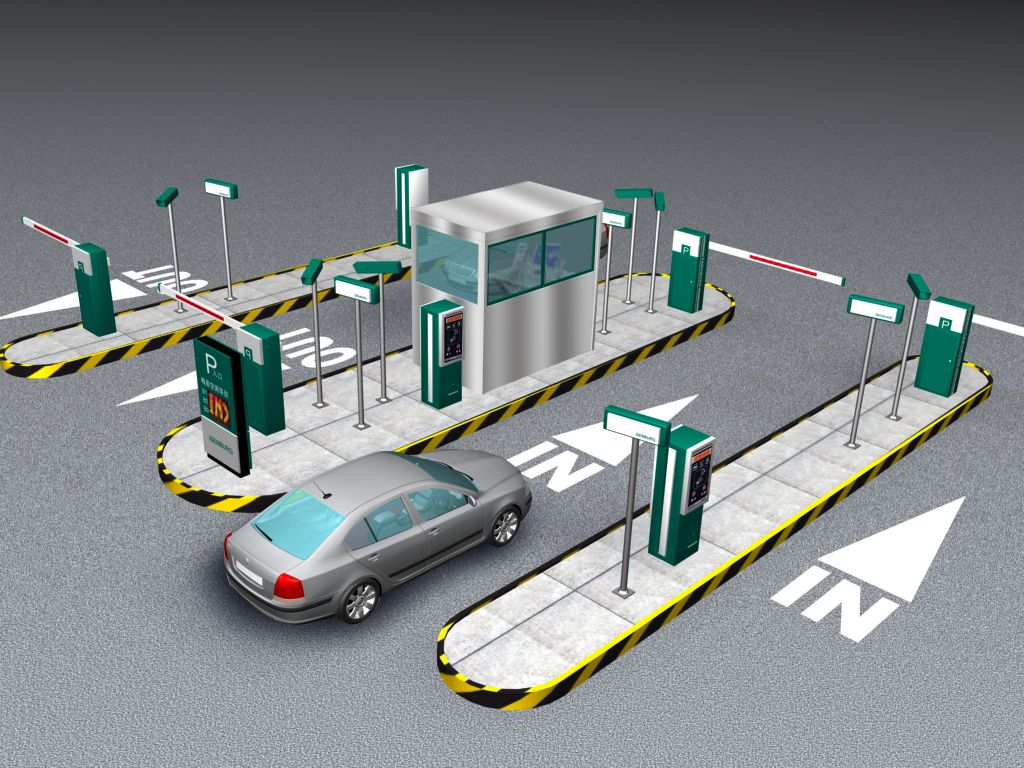

1. The installation location of the barrier gate and card reading device.

For surface parking lots, they should be placed so that vehicles can enter and exit unobstructedly, giving the lanes sufficient width. The parking lot lane is generally not less than 2.5 meters, and the optimal distance is 3.5 meters. The distance between the barrier and the card reading device should not be less than 2 meters, preferably 2.5 meters, this is to prevent the vehicle from hitting the brake lever when reading the card.

In the underground parking lot, due to the slope, the card reading device should be installed on a relatively high level of ground, so that it is more convenient for the driver to read the card. The installation of the barrier should pay attention to whether there is an obstacle above the barrier. If there is an obstacle, a straight bar cannot be used, and a folding barrier should be used. The position of the folding bar should be about 1.2 meters below the barrier.

In general, it is necessary to determine the installation position of the card reading device and the gate, and then lay the pipeline, so as to avoid the problem of re-wiring due to the change of the installation position. In the actual operation, the card reader device and the gate should be installed first, and then the personnel of Party A should be invited to simulate the use together. After both parties are satisfied, the pipeline will be laid.

2. The installation position of automatic card ejector and camera

If the automatic card dispenser is an independent device, such as a Bluetooth card reader, its installation position should be directly in front of the card reader, about 0.3 meters away. The installation height of the camera is between 2 and 2.5 meters, equipped with an automatic aperture lens, and the viewing angle range is set at the position of the license plate when the vehicle reads the card.
